Extreme Gradient Boosting

This decision tree model is called extreme because it improves bit a large factor the efficiency and speed of regular Gradient Boosting, on which it's based.

GPU-acceleration

The XGBoost library has a GPU-accelerated implementation and the usage is simply to specifiy gpu_hist instead of hist for CPU. It is noted that for small datasets, CPU training may be faster since it's well optimized.

clf = xgb.XGBClassifier(tree_method="gpu_hist")

Parameters tuning

Other important parameters to tune are the following :

n_estimators: This is the number of trees you want to build before taking the maximum voting or averages of predictions. Higher number of trees gives you better performance but makes your code slower. It is often set to a large value and early stopping is used to roll back the model to the one with the best performance 3.
max_depth: This is the maximum depth of a tree. The maximum depth limits the number of nodes in the tree. Tune this parameter for best performance; the best value depends on the interaction of the input variables. 3.
learning_rate: It is used to prevent overfitting. After boosting, the model will be a weighted sum of weak prediction. The learning_rate shrinks the feature weights to make the boosting process more conservative. The smaller the learning rate, the more conservative the algorithm will be 3.
subsample: This is the subsample ratio of the training instance. Setting it to 0.5 means that XGBoost randomly collects half of the data instances to grow trees and this will prevent overfitting 3.
colsample_bytree: This is the subsample ratio of columns when constructing each tree, ie the fraction of the features to be used at each step of the tree building process. This is useful to control over-fitting. After a tree is built, this tree will not change, so we can use a smaller subset to construct the tree. The smaller the value, the more conservative the algorithm will be 3. If colsample_bytree is set to 1, then all features are used at each step. If it's set to 0.5, then half of the features are used at each step.
min_child_weight: min_child_weight: This parameter controls the minimum sum of instance weight (hessian) needed in a child. In other words, it determines the minimum number of instances that must be in a node in order for the node to be split. If the sum of instance weights in a node is less than min_child_weight, then the node will not be split. This parameter is used to control overfitting by preventing the model from splitting nodes that have too few instances. The larger the min_child_weight, the more conservative the algorithm will be, meaning it will be more resistant to overfitting 2, 1.

In the context of the XGBoost model, a "child" refers to a node in the decision tree. Each node in the tree is a "parent" of the nodes that it branches off to, and these "child" nodes are the ones that the min_child_weight parameter controls. This parameter helps to prevent the model from creating overly complex trees that may fit the training data too closely, but not the test data.

Dealing with spatial data

Yes, it is possible to use XGBoost for spatial data, but it’s not exactly the same as how convolutional neural networks (CNNs) handle spatial data.

XGBoost is a gradient boosting framework that can handle various types of structured data, including spatial data 1. However, unlike CNNs, which can inherently handle spatial data due to their convolutional nature, XGBoost does not directly consider the spatial relationships between features.

In the context of spatial data, such as maps, XGBoost would treat each pixel or spatial unit as an independent feature. If you want to include spatial relationships or dependencies between different spatial units (like how CNNs do), you would need to engineer these features yourself. For example, you could create new features that capture the relationships between a pixel and its neighboring pixels.

There is research on using XGBoost with spatial data. For instance, a study on traffic flow prediction used XGBoost to predict traffic states by utilizing the origin-destination relationship of segment flow data between upstream and downstream on the highway 1. This is an example of how spatial relationships can be incorporated into the XGBoost model.

Remember, the key to using XGBoost with spatial data effectively is feature engineering. You need to create meaningful features that capture the spatial relationships in your data. This might require domain knowledge and a good understanding of your data.

example sampling

To sample fixed-size 50x50 pixels training images from a GeoTIFF stack of 50 variables using Python, you can use the rasterio and numpy libraries. Here’s a basic example of how you might do this:

import rasterio
import numpy as np

# Open the GeoTIFF file
with rasterio.open('your_file.tif') as src:
    # Read the whole stack into a 3D numpy array
    img_stack = src.read()

# Define the size of the patches
patch_size = 50

# Get the dimensions of the image stack
num_bands, height, width = img_stack.shape

# Calculate the number of patches that fit in the height and width
num_patches_height = height // patch_size
num_patches_width = width // patch_size

# Initialize a list to hold the patches
patches = []

# Loop over the image to extract the patches
for i in range(num_patches_height):
    for j in range(num_patches_width):
        # Extract a patch
        patch = img_stack[:, i*patch_size:(i+1)*patch_size, j*patch_size:(j+1)*patch_size]
        patches.append(patch)

Sure, here’s how you can rewrite the loop using list comprehension:

patches = [img_stack[:, i*patch_size:(i+1)*patch_size, j*patch_size:(j+1)*patch_size]
           for i in range(num_patches_height)
           for j in range(num_patches_width)]

The list comprehension iterates over each possible patch in the image, just like the double for loop, but does it all in one line. I hope this helps! Let me know if you have any other questions.
This code will give you a list of 3D numpy arrays, each of size (50, 50, 50), representing a 50x50 pixel patch from each of the 50 bands in your GeoTIFF stack.

Please replace 'your_file.tif' with the path to your GeoTIFF file. Also, this is a simple example and doesn’t handle cases where the height and width of the image are not perfectly divisible by the patch size. You might need to adjust it based on your specific needs.

Remember to install the necessary libraries by running pip install rasterio numpy in your Python environment.

For the specific code snippet you provided, here are a few potential optimizations:

Preallocate the list of patches: If you know the number of patches in advance, you can preallocate the list with None values and then fill in each patch. This can be faster than appending to the list.
Use a generator: If you don’t need all patches in memory at once, you can use a generator to create patches on the fly.
Use NumPy slicing: If your image stack is a NumPy array, use NumPy’s built-in slicing to extract patches, which is faster than using a loop.

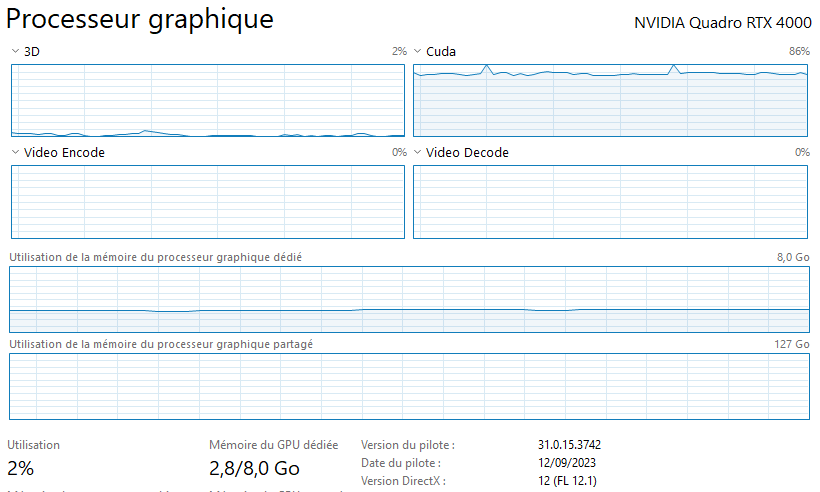

Chunking GPU predictions

batchsize = 100 000 seems to be a good value for 8 GB :

Type of labels

(Bard answer)
XGBoost's classification process differs slightly when the expected output is a string compared to a number. This is because XGBoost uses a different loss function for categorical classification tasks, which involves predicting probabilities for each class instead of just a single class label.

When predicting a number, XGBoost typically employs the mean squared error (MSE) loss function, which aims to minimize the squared difference between the predicted and actual values. However, for categorical classification, the algorithm utilizes the cross-entropy loss function, which measures the average difference between the predicted probability distribution and the true distribution of classes.

This difference in loss functions leads to a slightly different optimization process for categorical classification. XGBoost still constructs a decision tree ensemble, but the splitting criteria and error calculations are adjusted to better handle categorical data.

In addition, when dealing with string labels, XGBoost may require additional preprocessing steps to ensure the data is suitable for the classification process. This could involve converting the strings to numerical representations using techniques like one-hot encoding or label encoding.

Overall, XGBoost can effectively handle both numerical and categorical classification tasks, but it employs slightly different strategies for each type of output. The cross-entropy loss function and additional preprocessing steps are crucial for accurate classification when dealing with strings.

On using softmax instead :

Yes, you can manually specify that XGBoost should use the softmax loss function instead of the cross-entropy loss function for categorical classification tasks. However, this is not recommended unless you have a specific reason for doing so. The cross-entropy loss function is the standard choice for categorical classification, and it is well-optimized by XGBoost. Using the softmax loss function may lead to slightly different results, but it is unlikely to be significantly better than the cross-entropy loss function.

In fact, the softmax loss function is not even the default choice for multi-class classification in XGBoost. The default objective function for multi-class classification is "multi:softprob", which also uses cross-entropy loss but outputs probability estimates for each class rather than just a single class label. This can be useful for tasks like predicting class probabilities or performing multi-class classification with ensemble models.

If you do decide to use the softmax loss function for categorical classification, you should be aware that it is not as well-supported by XGBoost as the cross-entropy loss function. For example, XGBoost does not provide any built-in evaluation metrics for the softmax loss function. You will need to calculate these metrics yourself or use a custom evaluation metric.

Overall, it is generally better to stick with the cross-entropy loss function for categorical classification in XGBoost unless you have a specific reason to use the softmax loss function. The cross-entropy loss function is well-optimized by XGBoost and is more widely supported.

Here are some reasons why softmax is not recommended for XGBoost for categorical classification tasks:

Cross-entropy loss function is well-optimized: XGBoost is specifically designed to minimize cross-entropy loss, making it more efficient and accurate for categorical classification. The algorithm utilizes various techniques to optimize the loss function, including the gradient descent algorithm and regularization methods.
Standard choice for categorical classification: Cross-entropy loss is the standard choice for categorical classification tasks, and it is widely accepted in the machine learning community. This consistency ensures that XGBoost models are easily comparable to other models trained with the same loss function.
Output probability estimates: The default objective function for multi-class classification in XGBoost, "multi:softprob", also uses cross-entropy loss but outputs probability estimates for each class. This is a more informative output compared to just the predicted class label, making it useful for tasks like predicting class probabilities or performing multi-class classification with ensemble models.
Limited compatibility: Softmax loss is not as well-supported by XGBoost as cross-entropy loss. For instance, there are no built-in evaluation metrics for the softmax loss function, requiring additional calculations or custom metrics. This can be inconvenient and hinder the evaluation process.
Potential for inconsistencies: While softmax can be used with XGBoost, it may lead to inconsistencies in predictions compared to the cross-entropy loss function. This is because the optimization process for the two loss functions differs slightly.

In summary, while softmax is not strictly prohibited in XGBoost, the cross-entropy loss function is generally preferred due to its superior optimization, widespread acceptance, and compatibility with the default objective function. Using softmax may introduce additional complexities and inconsistencies, making it less recommended for practical applications.

Dealing with NaN values

XGBoost can handle missing values (NaN) internally during the tree building process. It doesn't require explicit imputation of missing values before training. Here's a breakdown of how XGBoost deals with NaNs:

1. Missing Value Detection:

XGBoost automatically identifies missing values during training. It recognizes features with missing values based on a pre-defined missing value indicator (typically NaN).

2. Splitting on Missing Values:

When building a decision tree, XGBoost considers the presence or absence of missing values in a feature as a potential split point. It evaluates the information gain of splitting the data based on whether a value is missing or not.

3. Best Split Determination:

XGBoost chooses the split point that leads to the best separation of data points based on the objective function (e.g., minimizing classification error). This might involve sending data points with missing values to one branch of the tree and those with valid values to another.

4. Surrogate Splits:

In some cases, XGBoost might create "surrogate splits" for missing values. These are splits based on another feature that can act as a proxy for the feature with missing values. This helps improve the model's ability to handle missing data.

5. Internal Handling:

The specific details of how XGBoost handles missing values during splitting and tree building are part of its internal algorithm. However, it doesn't require users to explicitly impute or encode missing values before training.

Advantages of XGBoost's Missing Value Handling:

Automatic Detection: No need for manual identification of missing values.
Flexibility: XGBoost can learn from the missingness itself, potentially capturing patterns in how missing values relate to other features.
Less Data Preprocessing: Saves time and effort compared to manual imputation or encoding.

However, it's important to note:

Random Splits: Missing value splits can sometimes introduce randomness into the tree building process.
Performance Impact: Depending on the amount and distribution of missing data, XGBoost's performance might be affected.

Alternatives for Handling Missing Values:

While XGBoost can handle missing values internally, you might still consider alternative approaches in specific scenarios:

High Proportion of Missing Values: If a feature has a very high percentage of missing values, it might be better to remove that feature altogether.
Domain Knowledge: If you have domain knowledge about missing values, you could use specific imputation techniques (e.g., mean/median imputation).

In conclusion, XGBoost offers a convenient way to handle missing values during training. However, it's valuable to understand its behavior and consider alternative approaches if necessary.
