Graph Theory


Graph Theory and Graphs

Graph Theory:

Graph theory is a branch of mathematics that studies graphs, which are mathematical structures used to model pairwise relationships between objects. It focuses on the properties and behavior of these structures, exploring how objects connect and relate to each other. Think of it as the study of networks and connections.

Graphs:

A graph consists of two main components:

  • Vertices: Also called nodes or points, these represent the objects or entities being studied. Think of them as individual actors in a network.
  • Edges: These represent the connections or relationships between vertices. Imagine them as lines or links connecting the actors.

Graphs can be directed (edges have a direction) or undirected (edges have no direction). Additionally, edges can be weighted (assigned a numerical value) to represent the strength or cost of the connection.

Here are some important features of graphs:

  • Order: The number of vertices in the graph.
  • Size: The number of edges in the graph.
  • Degree of a vertex: The number of edges connected to that vertex.
  • Path: A sequence of connected edges leading from one vertex to another.
  • Cycle: A path that starts and ends at the same vertex.
  • Connectivity: Whether all vertices are connected by paths.
  • Subgraph: A subset of vertices and edges forming a smaller graph within the original.

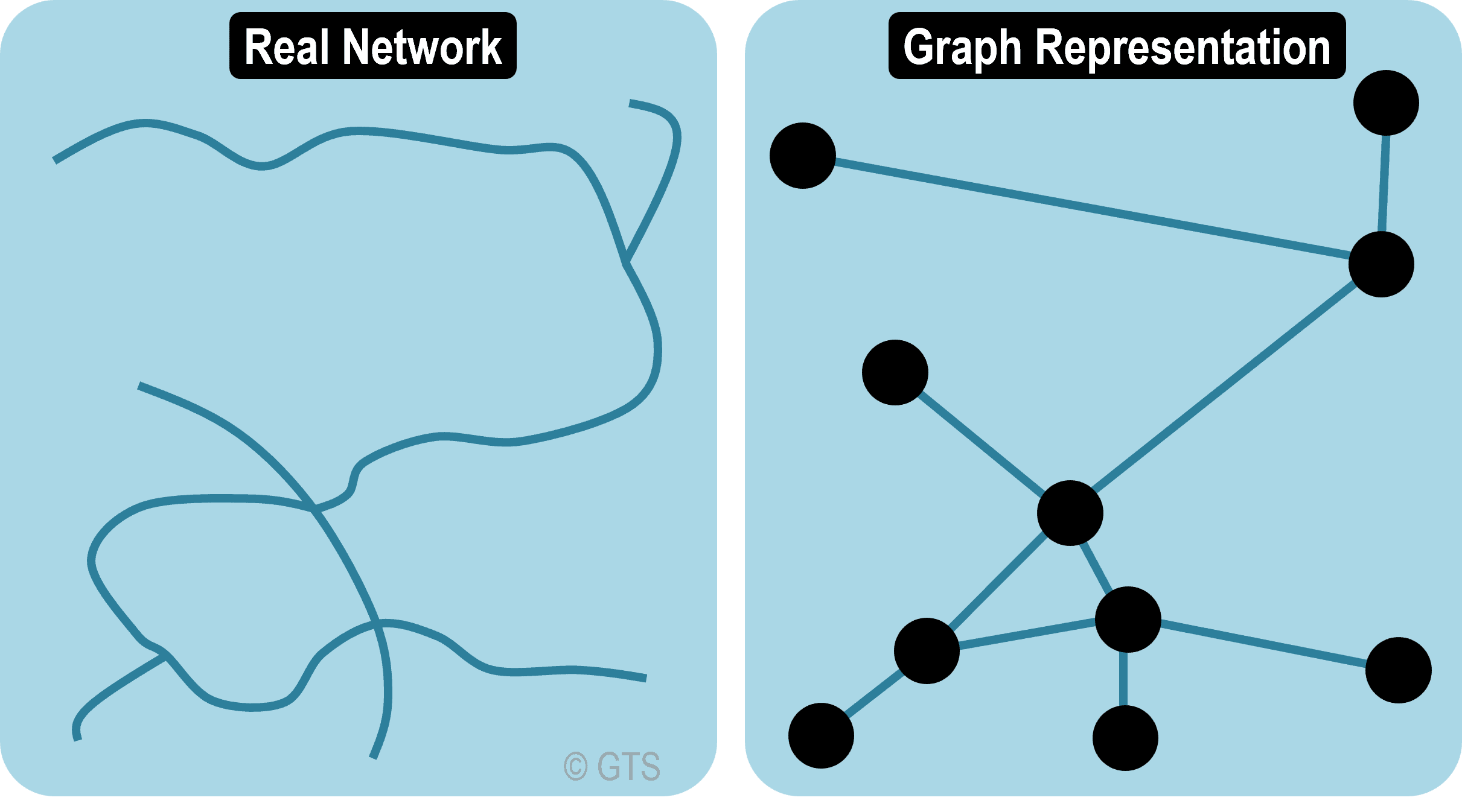

Examples of graphs in real life:

  • Social networks: Vertices represent people, edges represent friendships.
  • Transportation networks: Vertices represent cities, edges represent roads or flights.
  • Internet: Vertices represent websites, edges represent links between them.
  • Molecules: Vertices represent atoms, edges represent chemical bonds.

Link with manifolds and topology

There are fascinating connections between graph theory,manifolds, and topological spaces, offering different perspectives on understanding structure and relationships:

Graphs and Topological Spaces:

  • Direct Link: Every graph can be viewed as a topological space by constructing an appropriate topology on its vertices and edges. This allows applying tools from topology to analyze graphs, like studying their connectedness, path-finding problems, and even their "shape" in a topological sense.

Graphs and Manifolds:

  • Embedding Graphs on Manifolds: A key question is whether a given graph can be "drawn" on a specific manifold (like a plane, sphere, torus) without edges crossing. This connects to graph drawing algorithms and has applications in areas like network visualization and mapmaking.
  • Graph Homology: This advanced technique uses tools from algebraic topology to analyze graphs by looking at "cycles" and "boundaries" formed by their edges. It reveals features like the number of connected components and holes in the graph, providing a deeper understanding of its structure.

Manifolds and Topological Spaces:

  • Manifolds as Special Topological Spaces: Manifolds are a specific type of topological space with additional smoothness properties. They offer a more geometric perspective on shape and allow for richer analysis using calculus and differential geometry.
  • Topological Invariants: Studying manifolds as topological spaces allows calculating "invariants" like their Euler characteristic, which captures their overall topological type and is independent of specific metric details.

Overall:

These connections provide valuable tools for analyzing complex structures:

  • Graphs: Leverage topological and manifold perspectives to understand connectivity, layout, and underlying structure.
  • Manifolds: Use topological tools to extract global properties and invariants based on their "shape."
  • Topological Spaces: Offer a foundation for both graphs and manifolds, providing abstract yet powerful tools for studying relationships and connectivity.

Encoding graphs

There are several ways to encode graphs numerically, depending on the type of graph, the information you want to capture, and the intended application. Here are some common approaches:

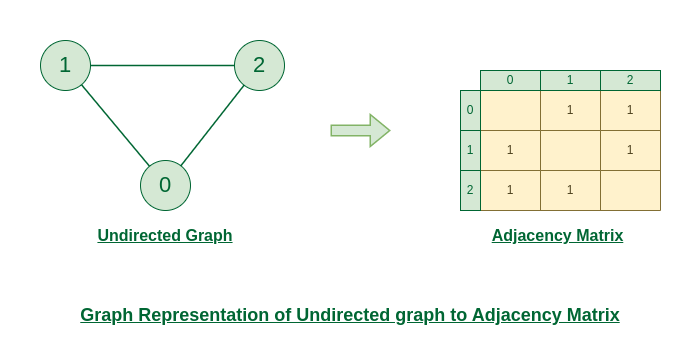

1. Adjacency Matrix:

  • This is the most basic and widely used method. It's a square matrix where rows and columns represent vertices, and each element (i,j) indicates the presence (value 1) or absence (value 0) of an edge between the corresponding vertices.
  • Weighted edges can be represented by assigning their weight to the corresponding matrix element.
  • This approach is simple and efficient for basic graph operations like checking connectivity and finding paths, but it loses information about edge direction and edge weights.

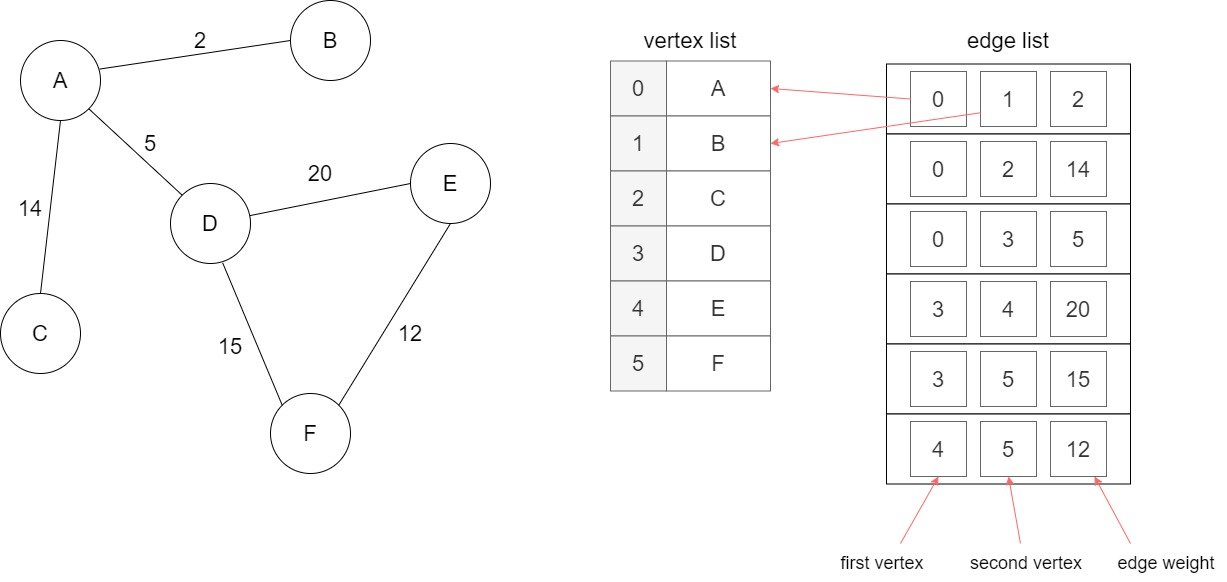

2. Edge list:

  • This method lists all edges in the graph, typically as pairs of vertices representing the connected nodes.
  • It can be easily extended to include edge weights by adding a third element to each pair.
  • This approach is more space-efficient for sparse graphs (fewer edges than vertices) and preserves edge direction, but it requires iterating through the entire list for some operations.

3. Incidence matrix:

  • This matrix has rows for vertices and columns for edges. A value of 1 at (i,j) indicates that vertex i is incident to edge j.
  • Similar to the adjacency matrix, it can represent edge weights and direction.
  • This representation is useful for analyzing specific characteristics like vertex degrees and edge connectivity, but it can be larger and less efficient for some tasks.

4. Node and Edge Feature Vectors:

  • In addition to structural information, graphs can contain additional data attached to nodes and edges (e.g., node attributes, edge labels).
  • These features can be encoded numerically using one-hot encoding, embedding techniques, or other methods depending on the data type.
  • This allows for incorporating richer information into the analysis, but it requires more complex processing and storage

5. Graph Embedding Techniques:

  • These advanced techniques represent entire graphs as numerical vectors capturing their structural and sometimes attribute-based information.
  • Popular methods include DeepWalk, Node2Vec, and Graph Convolutional Networks (GCNs).
  • This allows for using machine learning algorithms on graph data, but these methods often require specific training data and can be computationally expensive.

The choice of encoding method depends on your specific needs and the type of analysis you want to perform. Consider factors like data size, desired information, computational efficiency, and downstream applications when making your decision.
